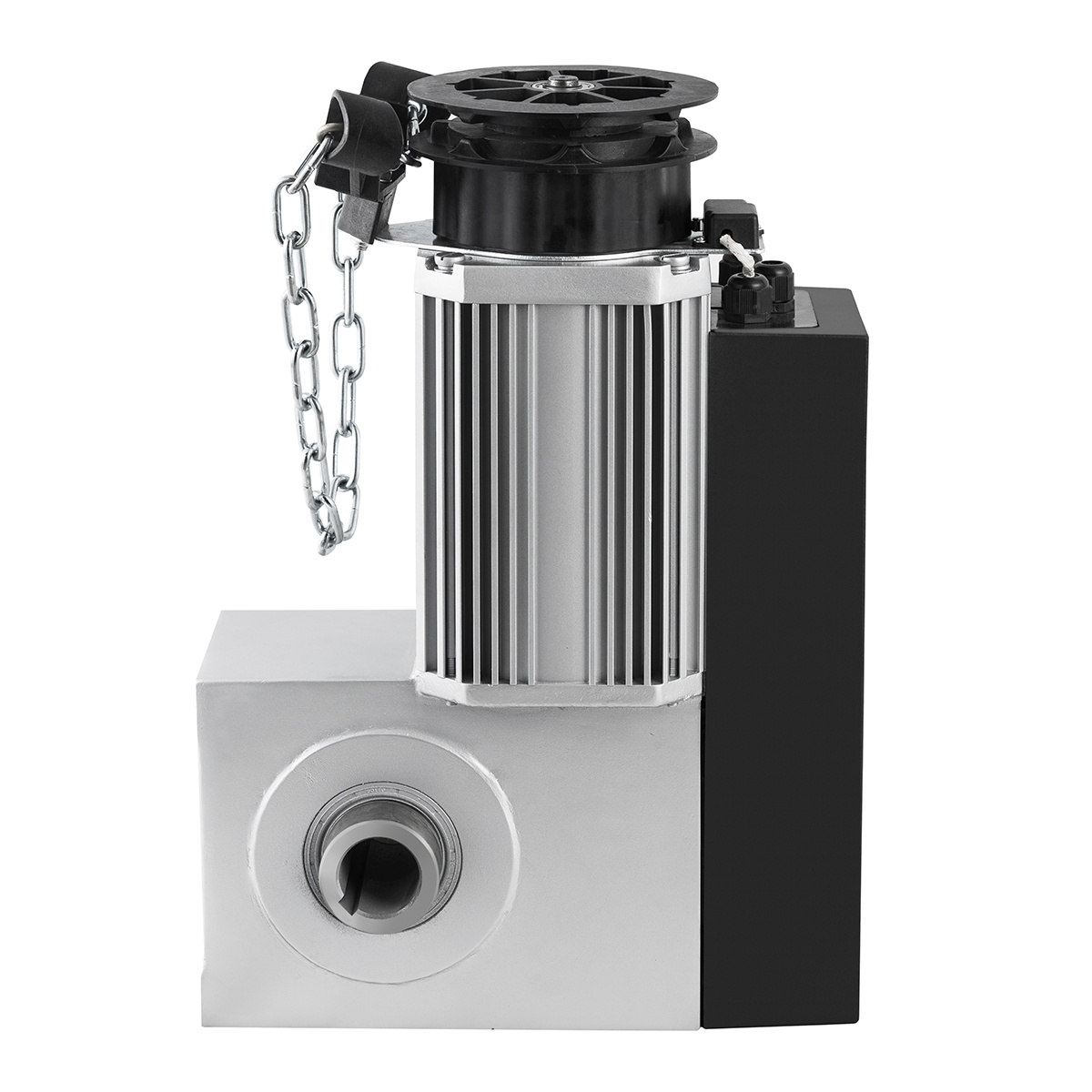

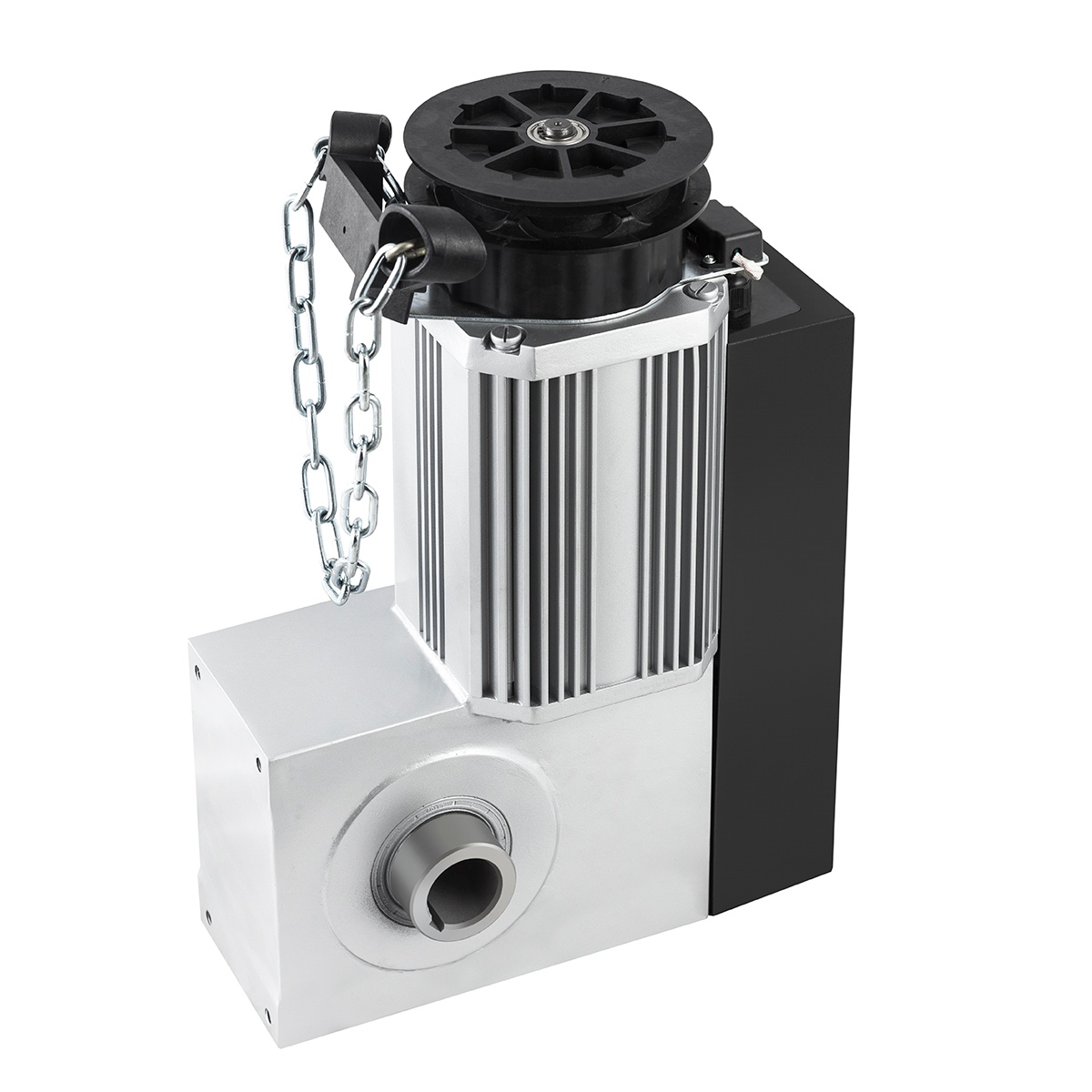

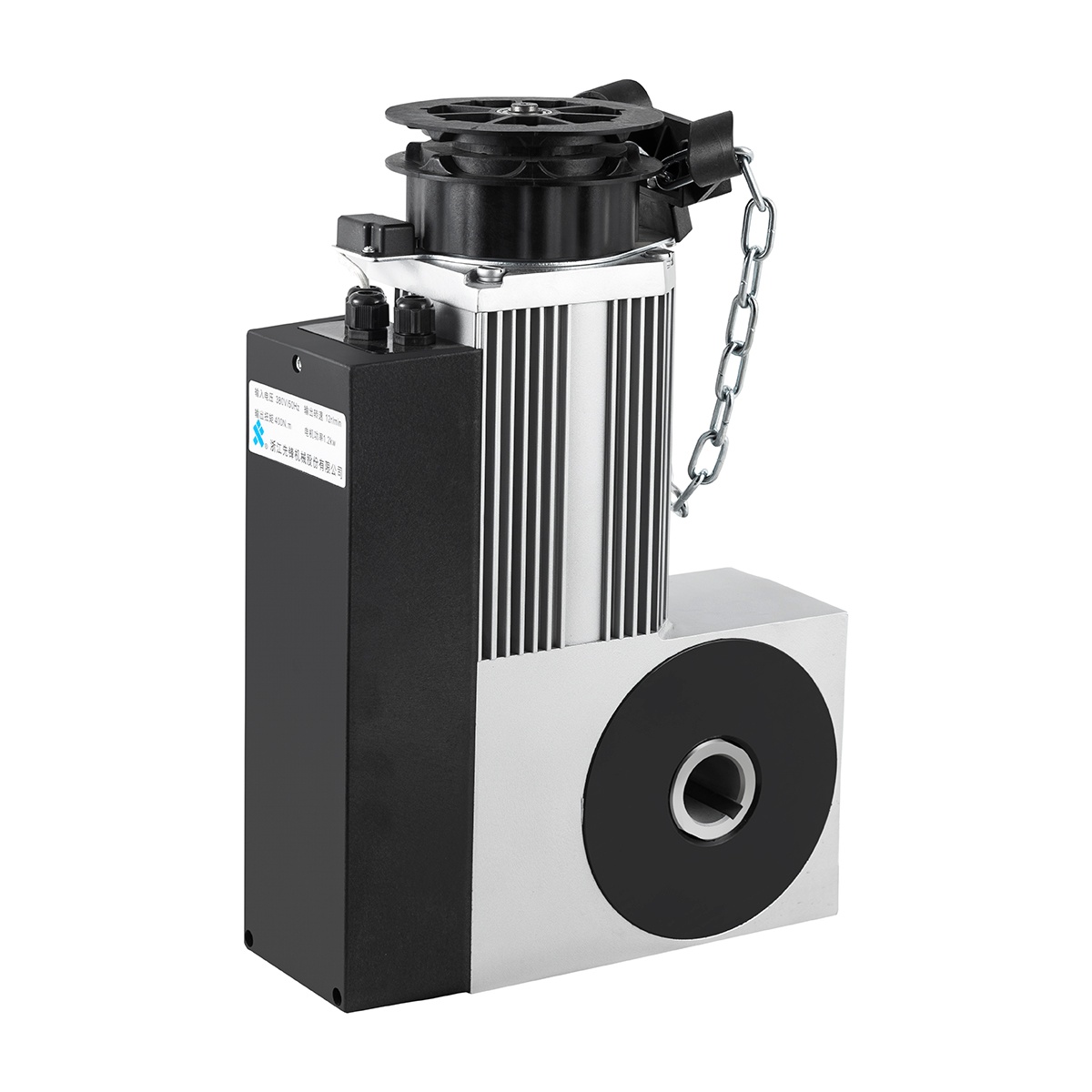

KG400/KG400S
Features：
Oil immerged gear reducer.
Mechanical limit switch.
Auto-stop when obstruction.
Auto-close function can be set.
Remote control with rolling code 433.92Mhz.
Manual release chain when power supply failure.
Wiring terminals for alarm lamp, infrared photocell, etc.
Technical data
| Model | KG400 | KG400S |
| Power supply | 220V | 380V |
| Motor power | 800W | 1200W |
| Output torque | 200N.m | 400N.m |
| Output speed | 9r/min | 13r/min |
| Output shaft aperture | Φ40mm | |
| Max.travel distance | 20 Cycles | |
| Max.dool size | 50m2 | 100m2 |
