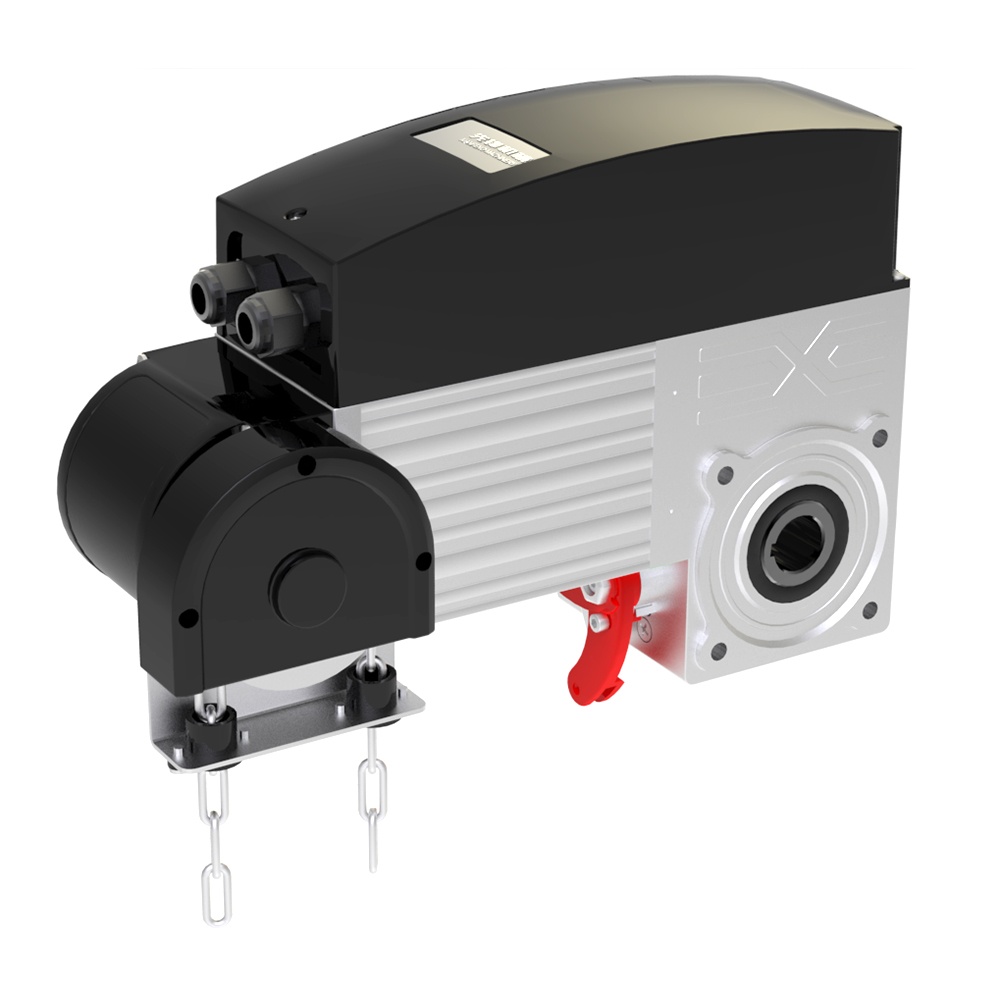

Oil immersed gear reducer, long life.
Quick release lever.
Build-in encoder, electronic limit switch.

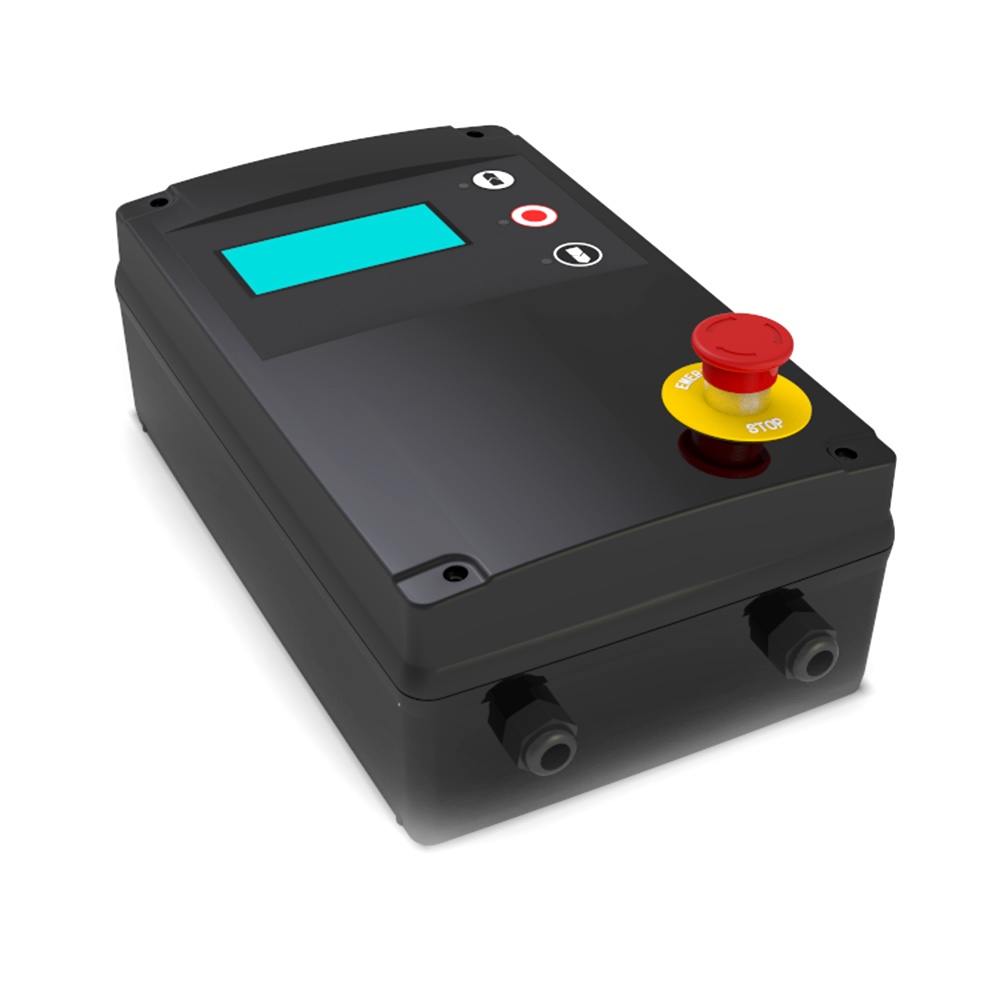

LCD display indicate working situation.
Manual release chain when power supply failure.
Overload & overheat protection.
Automatic close function.
Wiring terminals for alarm lamp, infrared photocell, etc.
Technical data
| Model | KGA50 | KGA80S |
| Power supply | 220V | 380V |
| Motor power | 370W | 480W |
| Output torque | 50N.m | 80N.m |
| Output speed | 24r/min | 24r/min |
| Output shaft aperture | Φ25.4mm | Φ25.4mm |
| Max.travel distance | 18 Cycles | 18 Cycles |
| Max.dool size | ≤25m2 | ≤32m2 |
| Work duty | S2 10min | S2 15min |
| AmbieN.mperature | -20℃~+50℃ | -20℃~+50℃ |

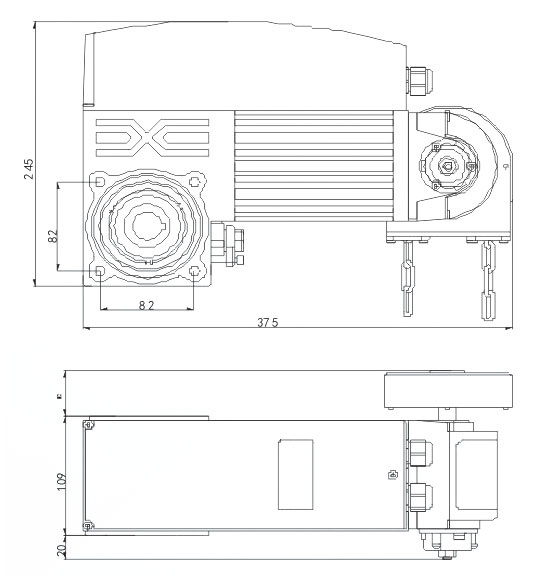

| Dimensions | 375*245*109mm | 375*245*109mm |
